ZKT-890A/1200A

Models ZKT-890A/1200A Full Servo Window Patching Machine

product details

Summarize

ZKT-800B/1200B window patching machine is a fully servo machine launched by Wenzhou Hengtong Machinery in 2022. This machine could been used for normal pasting,v-cutting and creasing line.It equipped with 11 groups of servo motors in paper feeder part,chain rail pusher part, the suction belt part, gluing roller part, film suction drum part, the cutting knife part and film feeding part. Touch screen computer controls the machine, and has the magic eye tracking compensation system, equal to every movement has the servo to tracking, This is a complete motion control system, error compensation system, high precision! Intelligent operation, convenient staff training.

Structure Characteristics

Servo system： China Inovance/China Taiwan DELTA/Japan YASKAWA
Motion Controller：China Inovance
Frequency Converter：China Inovance
Power Switch：China CHINT/France Schneider
Switch Button： China CHINT/France Schneider
Color Mark Photoelectricity： German JEELON/German SICK
Photoelectricity Switch:Japan Omron
Automatic Deviation Tension System：China ARISE

Technical parameter

Model	ZKT-800B	ZKT-1200B
Speed (speed can changed according to the paper size)	4000-13000pcs/h(Normal pasting) 4000-12000pcs/h (Corner cut & Creasing)
Paper Length	120-780mm	120-780mm
Paper Width	140-800mm	140-1200mm
Film Length	60-400mm	60-400mm
Film Width	40-450mm	40-500mm
Thickness of Film	0.05-0.25mm
Pump power	4.5kw
Machine power	19.5kw
External Dimension	650016501950mm	650021501950 mm
Weight	2300kg	3000kg

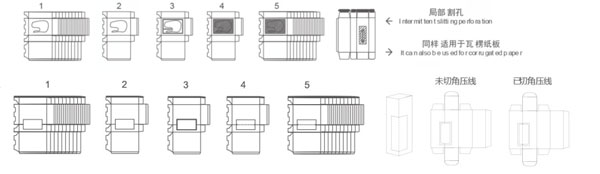

Production Process

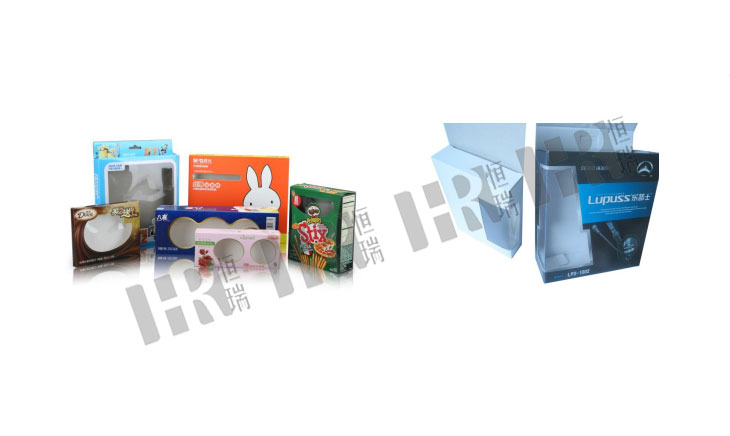

Sample
