ZKT-800/1200 window patching machine is a fully servo machine launched by Wenzhou Hengtong Machinery in 2022. This machine could only been used for normal pasting.It equipped with 9 groups of servo motors in paper feeder part,chain rail pusher part, the suction belt part, gluing roller part, film suction drum part, the cutting knife part and film feeding part. Touch screen computer controls the machine, and has the magic eye tracking compensation system, equal to every movement has the servo to tracking, This is a complete motion control system, error compensation system, high precision! Intelligent operation, convenient staff training.

Structure Characteristics

Servo system： China Inovance/China Taiwan DELTA/Japan YASKAWA
Motion Controller：China Inovance
Frequency Converter：China Inovance
Power Switch：China CHINT/France Schneider
Switch Button： China CHINT/France Schneider
Color Mark Photoelectricity： German JEELON/German SICK
Photoelectricity Switch:Japan Omron

Technical parameter

Model	ZKT-800	ZKT-1200
Speed (speed can changed according to the paper size)	4000-20000pcs/h
Paper Length	120-780mm	120-780mm
Paper Width	140-800mm	140-1200mm
Film Length	60-400mm	60-400mm
Film Width	40-450mm	40-500mm
Thickness of Film	0.03-0.25mm
Pump Power	4.5kw
Machine power	17kw
External Dimension	650016501950mm	620021501950 mm
Weight	2300kg	3000kg

ZKT-800/1200

product details

Summarize

Structure Characteristics

Technical parameter

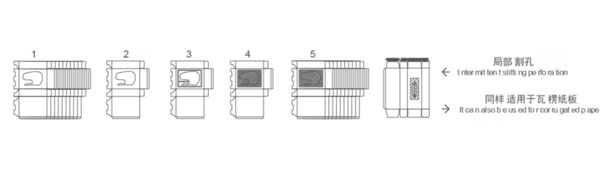

Production Process
