ZKT-340B
Window Patching Machine
product details
Summarize
zkt-340B、650B AND 980B window Patching Machine can be extensively used in sticking window film on various paper boxes and the machine is configured with corner cutting ling pressing functions
Structure Characteristics
1.Flat belt paper suction mechanism, paper feeding without shutting down the machine, position checking mechanism and accurate locating/
2.Disk glue applying mode is adopted to ensure applied glue to be well distribute and the amount of gluing can be effectively feeding.
3.PLC programming technique is adopted to ensure accurate film feeding
4.Horizontal knife film cutting,stable and reliable
2.Disk glue applying mode is adopted to ensure applied glue to be well distribute and the amount of gluing can be effectively feeding.
3.PLC programming technique is adopted to ensure accurate film feeding
4.Horizontal knife film cutting,stable and reliable
Application scope
1.Feeding
2.Registering
3.Gluing
4.Film Patching
5.Finish
2.Registering
3.Gluing
4.Film Patching
5.Finish
Technical parameter
| Model | ZKT-340B |
| Speed | 6000-10000pcs/h(Flat fifilm patching) |
| 4000-7000pcs/h(V-cut and creasing) | |
| Paper Length | 100-330mm |
| Paper Width | 120-420 |
| Applicable paper grammage | 250-1000g/㎡ |
| Film Length | 0.03-0.25mm |
| Film Width | 60-120mm |
| Thickness of Film | 30-160mm |
| Main Power | 1.5KW |
| Power of Pump | 0.75KW |
| External Dimension | 3980x950x1400mm |
| Weight | 1400kg |

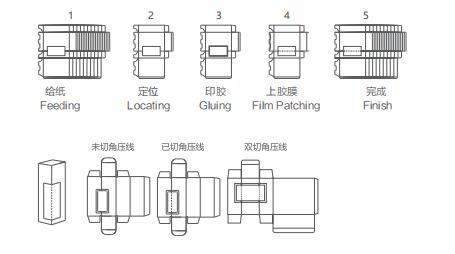

Production Process
Sample
