ZKT-340A/650A/980A
Window Patching Machine
product details
Summarize
Models ZKT-340A and 650A and 980A Window Patching Machine are widely used for sticking films on the
windows of various paper boxes,e.g tissue box,medicine box,shirt box,etc.
windows of various paper boxes,e.g tissue box,medicine box,shirt box,etc.
Structure Characteristics
1. Flat belt paper suction mechanism, paper feeding without shutting down the machine, position checking mechanism and accurate locating.
2. Disk glue applying mode is adopted to ensure applied glue is well distrbuted and the amount of applied glue
3. Horizontal knife cutting film, stable and reliable.
4. The meticulously designed fine adjustment device of ZKT series window patching machine is convenient for adjustment.
2. Disk glue applying mode is adopted to ensure applied glue is well distrbuted and the amount of applied glue
3. Horizontal knife cutting film, stable and reliable.
4. The meticulously designed fine adjustment device of ZKT series window patching machine is convenient for adjustment.
Technical parameter
| Model | ZKT-340A | ZKT-650A | ZKT-980A |
|
Operation Speed
|
4000-6000pcs/h |
3000-6000pcs/h |
3000-5000pcs/h |
|
Applicable Paper Specifification
|
100x120-330x440mm | 300x200-700x630mm | 300x200-700x980mm |
|
Applicable Paper Grammage
|
250-1000g/m2 | 250-1000g/m2 | 250-1000g/m2 |
|
Dimension of Film-sticking
|
60x30-120x160mm | 80x30-300x260mm | 80x30-300x760mm |
|
Thickness of Film
|
0.03-0.25mm | 0.03-0.25mm | 0.03-0.25mm |
|
Main Power
|
1.5kw | 2.2kw | 3kw |
|
Power of Air Pump
|
2.2kw | 2.2kw | 2.2kw |
|
Weight of Complete Machine
|
1200kg | 1600kg | 2000kg |
|
External Dimensions
|
4650x950x1400mm | 5150x1100x1700mm | 5650x1500x1700mm |

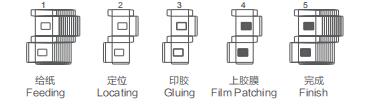

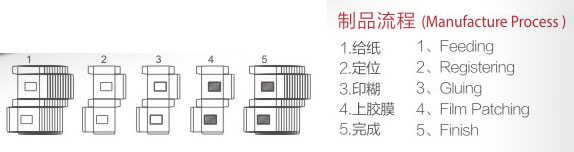

Production Process
