ZF-400、280

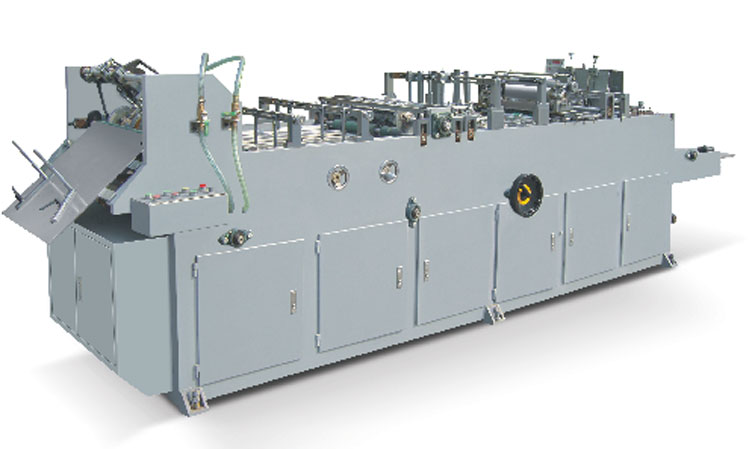

Full Automatic Chinese Style And Western Style Envelope Machine
product details
Summarize
ZF-400 and 280 full-automatic Chinese style and western style envelop machine is mainly use for various size of Chinese and Western style envelopes.
Structure Characteristics
1. Suction type of paper pile bottom feeding mechanism is adopted, so paper can be added without shutting down the machine. Toggle pin location checking is adopted to achieve accurate locating.
2. Disk glue applying to achieve well distributed gluing and the amount of glue can be adjusted.
3. A folding mechanism with dual-suction-drum is equipped to ensure accurate folding.
2. Disk glue applying to achieve well distributed gluing and the amount of glue can be adjusted.
3. A folding mechanism with dual-suction-drum is equipped to ensure accurate folding.
Technical parameter
| Model | ZF-400 | ZF-280 |
|
Operation speed |
6000-10000pcs/h |
6000-10000pcs/h |
| Applicable envelope scope | Chinese Style1-9# Western Style2-7# | Chinese Style1-7# WesternStyle2-5# |
| Applicable paper Grammage | 70-120g/m2 | 70-120g/m2 |
| Main Power | 2.2kw | 1.5kw |
| Power of air pump | 2.2kw | 2.2kw |
| Weight of complete machine | 1500kg | 1500kg |
| External dimensions | 4350x1180x1460mm | 2855x1000x1255mm |

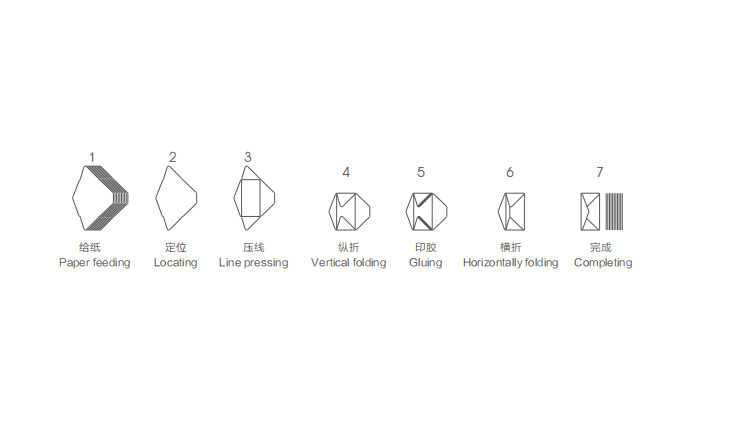

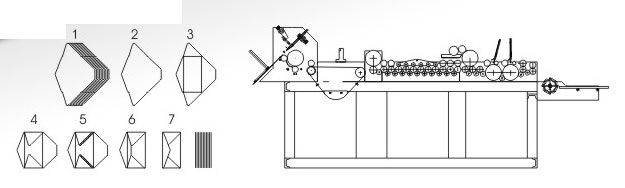

Production Process
