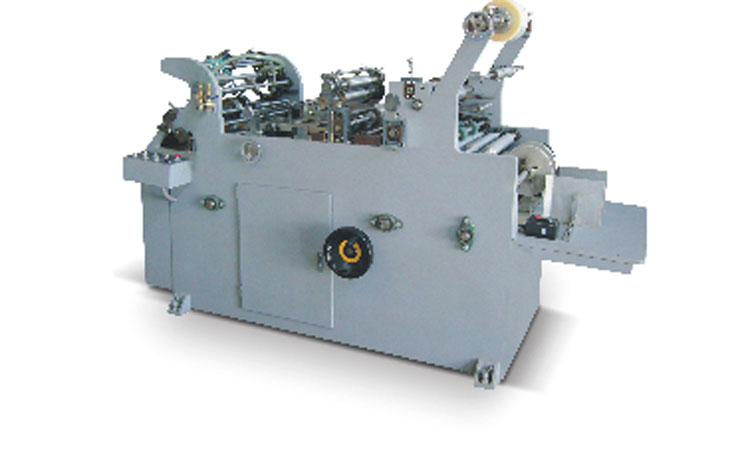

ZF-380
Envelope Window Patching Machine
product details
Summarize
Model ZF-380 Envelope Window Patching Machine is applicable for film-sticking process after window are cut on the chinese or western style envelopes.
Structure Characteristics
1. Suction type of paper pile bottom feeding mechanism is adopted so paper can be added without shutting down the machine. Toggle pin location checking is adopted tp achieve accurate locating.
2. Disk glue applying to achieve well distributed gluing and the amount of glue can be adjusted.
3. Horizontal knife film cutting, stable and reliable.
4.The well designed-fine-tune adjustments are convinent for adjustment
2. Disk glue applying to achieve well distributed gluing and the amount of glue can be adjusted.
3. Horizontal knife film cutting, stable and reliable.
4.The well designed-fine-tune adjustments are convinent for adjustment
Technical parameter
| Model | ZF-380 |
|
Operation speed |
4000-7000pcs/h |
| Applicable envelope specification | 150×120-300×450mm(1-7#) |
| Film dimension | 60×40-180×200mm |
| The thickness of the film | 0.03-0.15mm |
| Applicable paper grammage | 80-120g/m2 |
| Main power | 1.5kw |
| Power of air pump | 2.2kw |
| Weight of machine | 1200kg |
| External dimensions |
2200×1000×1400mm |

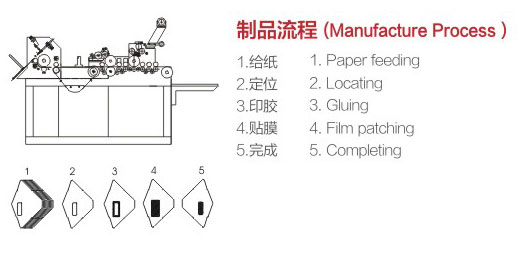

Production Process
